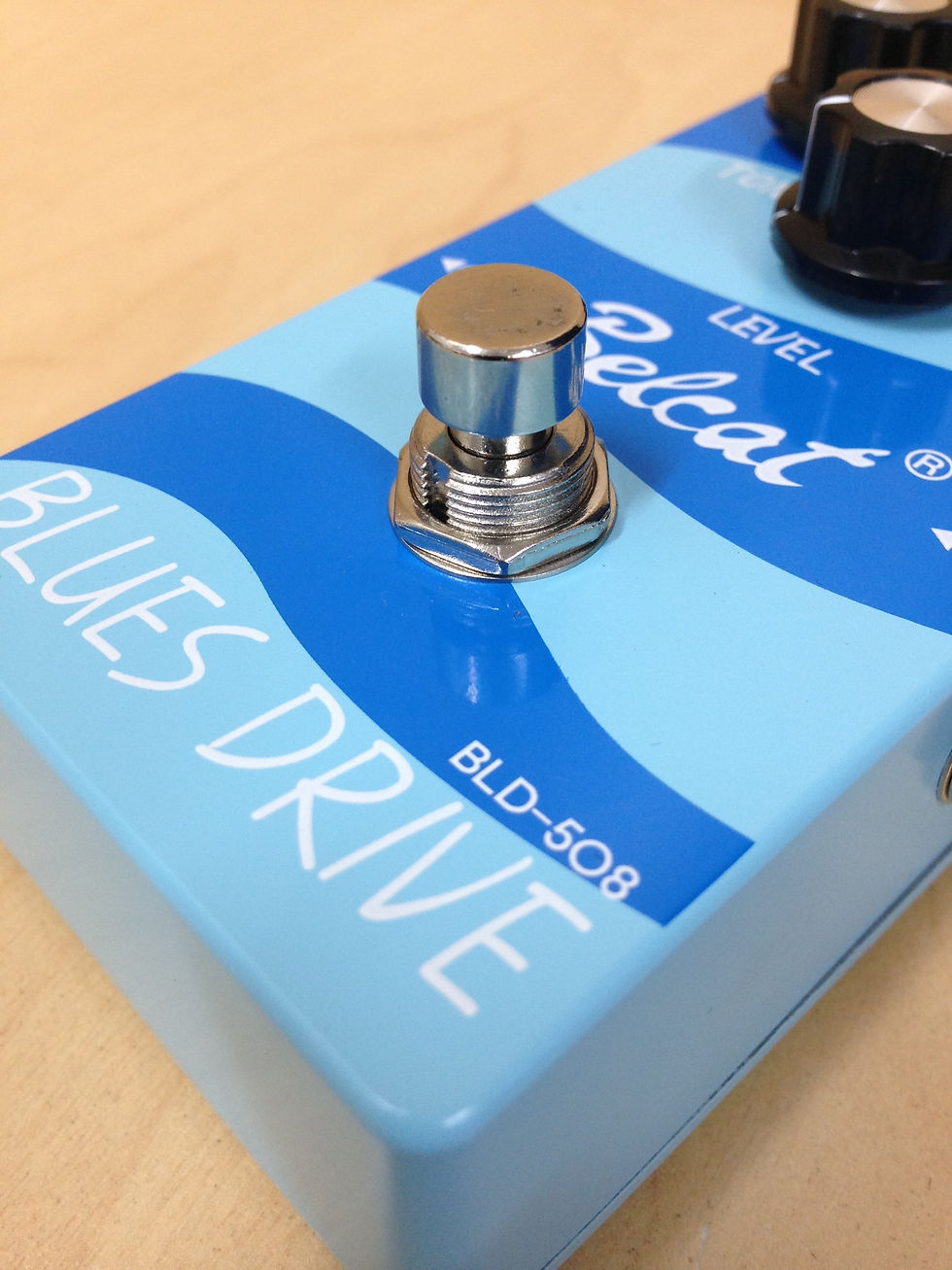

Belcat BLD-508 Blues Drive Guitar Effects Pedal

Enclosed in a rugged steel enclosure, the Belcat BLD-508 Blues Drive pedal offers definitive Tone and Gain modification with lush warm Bluesy tones, accompanied by a strong exterior and simple-to-use, easy-to-navigate settings, making this a must-have pedal for any gigging musician's pedalboard.

Specifications:

Input Connector: 1/4’’ TS

Input Impedance: 2MΩ (2 megaohms)

Output Connector: 1/4’’ TS

Output Impedance: 1KΩ less (1 Kohms)

Nominal Input Level: -20dBu

Nominal Output Level: -20dBu

Power Connector: 2.5mm DC Jack

Power Supply: 9V (6F22) Battery or DC 9V ADAPTER

Power Consumption: 5.5mA

Connectors: Input Jack, Output Jack, DC input

Controls: Tone, Gain, Level

Bypass: True bypass

Dimension: L 110mm X W 62mm X H 50mm (4.33" X 2.44" X 1.97')

Weight: 230g

Color: Blue

Changing the battery

When indicator LED becomes dim or does not light, it means the battery must be replaced.

In order to replace battery, please follow step below.

1) Release the 4 screws on the back side to open it.

2) Remove old battery and put a new battery in.

3) Close the cover and screw it.

Our company, based in AUS, offers items of quality at significantly lower prices than retail stores. Each item is packaged with care for safe delivery. Thank you for stopping by.

Belcat BLD508 Blues Drive Guitar Effects Pedal with 9v Replaceable Battery

SKU: BLD508
$64.00Price
